Performance

Slides

Here we consider how to measure the performance of the trained models.

The overarching goal is Generalization. That is, we want our trained models to perform well not just on the training data but also on unseen test data. With suﬀicient capacity (i.e., number of hidden units), a neural network model will often perform perfectly on the training data. However, this does not necessarily mean it will generalize well to new test data.

We will see that the test errors have three distinct causes and that their relative contributions depend on

Inherent uncertainty in the task
Amount of training data
Choice of model
- This raises the issue of hyperparameter search. We discuss how to select both the model hyperparameters (e.g., the number of hidden layers and the number of hidden units in each) and the learning algorithm hyperparameters (e.g., the learning rate and batch size).

Train, Validation, and Test Splits

In supervised learning, it is common practice to split the available dataset into three separate sets. Note that the percentages are approximate and the exact split may vary depending on the dataset and the specific requirements of the task.

Also the three sets should be mutually exclusive, meaning that no data point should appear in more than one set.

Training set

Around 60-70% of randomly selected data, used to fit the model parameters. The training set is used to learn the model parameters using gradient-based optimization methods such as stochastic gradient descent (SGD) during the training process. Think of training as studying for an exam.

Validation set

Around 10-20% of remaining data, used to tune hyperparameters and make decisions about the model architecture. The validation set is used to tune hyperparameters and make decisions about the model architecture. Compare different numbers of layers or neurons; choose when to stop training. For example, you might train several models with different configurations such as varying the number of hidden layers, the number of neurons in each layer, and learning rates. Then pick the one that performs best on the validation set.

Think of validation as taking practice exams to gauge your readiness.

Test set

Around 20% of the data that is left after selecting the training and validation sets, used to evaluate the final model’s generalization performance. Think of testing as taking the final exam. Evaluate the final chosen model | Measure its accuracy after those choices are complete |

Loss and Error for Train vs. Test sets

We explore model performance using the MNIST-1D dataset (figure below).

This consists of ten classes \(y \in \{0,1,...,9\}\), representing the digits 0–9.

Each of the 10 digits has a 12-dimensional vector template. The template represents the typical shape of the corresponding digit in one dimension. From these 10 templates, the training examples are generated by applying random transformations and adding noise.

In particular, first padding is randomly added to top and bottom of the template (panel b), and then the template is shifted horizontally by a random amount (panel c).

The horizontal offset of the transformed template is then sampled at 40 vertical positions (panel d).

The full training dataset \(\{x_i,y_i\}\) consists of \(I= 4000\) training examples, each consisting of \(D_i = 40\) dimensions representing the horizontal offset at 40 positions.

The ten classes are drawn uniformly during data generation, so there are∼400 examples of each class.

# Run this if you're in a Colab to install MNIST 1D repository
%pip install git+https://github.com/greydanus/mnist1d

Collecting git+https://github.com/greydanus/mnist1d
  Cloning https://github.com/greydanus/mnist1d to /private/var/folders/l9/y8y3rmys2sl93tzzph3dl7jw0000gr/T/pip-req-build-tfwbj0kf
  Running command git clone -q https://github.com/greydanus/mnist1d /private/var/folders/l9/y8y3rmys2sl93tzzph3dl7jw0000gr/T/pip-req-build-tfwbj0kf
  Installing build dependencies ... done
  Getting requirements to build wheel ... done
    Preparing wheel metadata ... done
Requirement already satisfied: requests in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from mnist1d==0.0.2.post16) (2.32.3)
Requirement already satisfied: scipy in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from mnist1d==0.0.2.post16) (1.11.4)
Requirement already satisfied: matplotlib in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from mnist1d==0.0.2.post16) (3.9.4)
Requirement already satisfied: numpy in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from mnist1d==0.0.2.post16) (1.23.5)
Requirement already satisfied: packaging>=20.0 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (24.1)
Requirement already satisfied: python-dateutil>=2.7 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (2.9.0.post0)
Requirement already satisfied: importlib-resources>=3.2.0 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (6.5.2)
Requirement already satisfied: pillow>=8 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (9.0.1)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (3.2.5)
Requirement already satisfied: fonttools>=4.22.0 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (4.25.0)
Requirement already satisfied: contourpy>=1.0.1 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (1.1.0)
Requirement already satisfied: kiwisolver>=1.3.1 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (1.3.2)
Requirement already satisfied: cycler>=0.10 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from matplotlib->mnist1d==0.0.2.post16) (0.11.0)
Requirement already satisfied: zipp>=3.1.0 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from importlib-resources>=3.2.0->matplotlib->mnist1d==0.0.2.post16) (3.20.0)
Requirement already satisfied: six>=1.5 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from python-dateutil>=2.7->matplotlib->mnist1d==0.0.2.post16) (1.16.0)
Requirement already satisfied: certifi>=2017.4.17 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from requests->mnist1d==0.0.2.post16) (2024.7.4)
Requirement already satisfied: idna<4,>=2.5 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from requests->mnist1d==0.0.2.post16) (3.8)
Requirement already satisfied: charset-normalizer<4,>=2 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from requests->mnist1d==0.0.2.post16) (3.3.2)
Requirement already satisfied: urllib3<3,>=1.21.1 in /Users/fsultan/opt/anaconda3/lib/python3.9/site-packages (from requests->mnist1d==0.0.2.post16) (2.2.2)
Building wheels for collected packages: mnist1d
  Building wheel for mnist1d (PEP 517) ... done
  Created wheel for mnist1d: filename=mnist1d-0.0.2.post16-py3-none-any.whl size=14664 sha256=015728f879e58e4deedddc55b6cdb0cc43f05f1b0713cf426e154aa7f62e363e
  Stored in directory: /private/var/folders/l9/y8y3rmys2sl93tzzph3dl7jw0000gr/T/pip-ephem-wheel-cache-ai3xx7gm/wheels/c4/34/e0/a3b4376888d7486638e921a69788a6309c58168eb2b2183b5b
Successfully built mnist1d
Installing collected packages: mnist1d
Successfully installed mnist1d-0.0.2.post16
Note: you may need to restart the kernel to use updated packages.

import mnist1d

args = mnist1d.data.get_dataset_args()
data = mnist1d.data.get_dataset(args, path='./mnist1d_data.pkl', download=False, regenerate=False)

# The training and test input and outputs are in
# data['x'], data['y'], data['x_test'], and data['y_test']
print("Examples in training set: {}".format(len(data['y'])))
print("Examples in test set: {}".format(len(data['y_test'])))
print("Length of each example: {}".format(data['x'].shape[-1]))

Successfully loaded data from ./mnist1d_data.pkl
Examples in training set: 4000
Examples in test set: 4000
Length of each example: 40

We use a network with \(D_i = 40\) inputs and \(D_o = 10\) outputs which are passed through a softmax function to produce class probabilities.

The network has two hidden layers with \(D= 100\) hidden units each. It is trained using stochastic gradient descent with batch size 100 and learning rate 0.1 for 6000 steps (150 epochs) with a multiclass cross-entropy loss.

import torch, torch.nn as nn


D_i = 40    # Input dimensions
D_k = 100   # Hidden dimensions
D_o = 10    # Output dimensions

model = torch.nn.Sequential(
    torch.nn.Linear(D_i, D_k),
    torch.nn.ReLU(),
    torch.nn.Linear(D_k, D_k),
    torch.nn.ReLU(),
    torch.nn.Linear(D_k, D_o)
);

Figure below shows that the training error decreases as training proceeds.

The training data are classified perfectly after about 4000 steps. The training loss also decreases, eventually approaching zero. However, this doesn’t imply that the classifier is perfect; the model might have memorized the training set but be unable to predict new examples.

This phenomenon is known as Overfitting, where the model performs well on the training data but fails to generalize to unseen test data.

To estimate the true performance, we need a separate test set of input/output pairs \(\{x_i,y_i\}\).

To this end, we generate 1000 more examples using the same process.

Figure below also shows the errors for this test data as a function of the training step. These decrease as training proceeds, but only to around 40%.

This is better than the chance error rate of 90% but far worse than for the training set; the model has not generalized well to the test data.

The test loss decreases for the first 1500 training steps but then increases again.

At this point, the test error rate is fairly constant; the model makes the same mistakes but with increasing confidence.

This decreases the probability of the correct answers and thus increases the negative log-likelihood.

This increasing confidence is a side-effect of the softmax function; the pre-softmax activations are driven to increasingly extreme values to make the probability of the training data approach one (see figure 5.10).

MNIST-1D results.

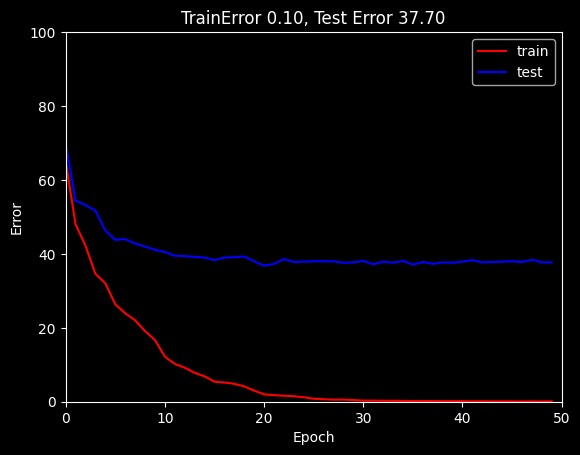

Percent classification error as a function of the training step. The training set errors decrease to zero, but the test errors do not drop below ∼ 40%. This model doesn’t generalize well to new test data.

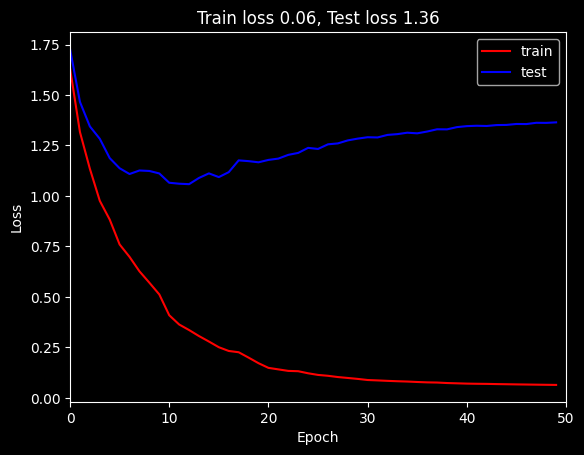

Loss as a function of the training step. The training loss decreases steadily toward zero. The test loss decreases at first but subsequently increases as the model becomes increasingly confident about its (wrong) predictions.

from torch.utils.data import TensorDataset, DataLoader
from torch.optim.lr_scheduler import StepLR
import numpy as np
import matplotlib.pyplot as plt

plt.style.use('dark_background')


def weights_init(layer_in):
  # Initialize the parameters with He initialization
  if isinstance(layer_in, torch.nn.Linear):
      torch.nn.init.kaiming_normal_(layer_in.weight, nonlinearity='relu')
      if layer_in.bias is not None:
          torch.nn.init.constant_(layer_in.bias, 0)

  print("Initializing layer")
  return layer_in


# Call the function you just defined
model.apply(weights_init)
# choose cross entropy loss function (equation 5.24)
loss_function = torch.nn.CrossEntropyLoss()
# construct SGD optimizer and initialize learning rate and momentum
optimizer     = torch.optim.SGD(model.parameters(), lr = 0.05, momentum=0.9)
# object that decreases learning rate by half every 10 epochs
scheduler     = StepLR(optimizer, step_size=10, gamma=0.5)
x_train       = torch.tensor(data['x'].astype('float32'))
y_train       = torch.tensor(data['y'].transpose().astype('int64'))
x_test        = torch.tensor(data['x_test'].astype('float32'))
y_test        = torch.tensor(data['y_test'].astype('int64'))

# load the data into a class that creates the batches
data_loader   = DataLoader(TensorDataset(x_train,y_train), batch_size=100, shuffle=True, worker_init_fn=np.random.seed(1))

# Initialize model weights
model.apply(weights_init)

# loop over the dataset n_epoch times
n_epoch       = 50

# store the loss and the % correct at each epoch
losses_train  = np.zeros((n_epoch))
errors_train  = np.zeros((n_epoch))
losses_test   = np.zeros((n_epoch))
errors_test   = np.zeros((n_epoch))

for epoch in range(n_epoch):
  # loop over batches
  for i, batch in enumerate(data_loader):
    # retrieve inputs and labels for this batch
    x_batch, y_batch = batch
    # zero the parameter gradients
    optimizer.zero_grad()
    # forward pass -- calculate model output
    pred = model(x_batch)
    # compute the loss
    loss = loss_function(pred, y_batch)
    # backward pass
    loss.backward()
    # SGD update
    optimizer.step()

  # Run whole dataset to get statistics -- normally wouldn't do this
  pred_train                = model(x_train)
  pred_test                 = model(x_test)
  _, predicted_train_class  = torch.max(pred_train.data, 1)
  _, predicted_test_class   = torch.max(pred_test.data, 1)
  errors_train[epoch]       = 100 - 100 * (predicted_train_class == y_train).float().sum() / len(y_train)
  errors_test[epoch]        = 100 - 100 * (predicted_test_class == y_test).float().sum() / len(y_test)
  losses_train[epoch]       = loss_function(pred_train, y_train).item()
  losses_test[epoch]        = loss_function(pred_test, y_test).item()
  print(f'Epoch {epoch:5d}, train loss {losses_train[epoch]:.6f}, train error {errors_train[epoch]:3.2f},  test loss {losses_test[epoch]:.6f}, test error {errors_test[epoch]:3.2f}')

  # tell scheduler to consider updating learning rate
  scheduler.step()


# Plot the results
fig, ax = plt.subplots()
ax.plot(errors_train,'r-',label='train')
ax.plot(errors_test,'b-',label='test')
ax.set_ylim(0,100); ax.set_xlim(0,n_epoch)
ax.set_xlabel('Epoch'); ax.set_ylabel('Error')
ax.set_title('TrainError %3.2f, Test Error %3.2f'%(errors_train[-1],errors_test[-1]))
ax.legend()
plt.show()

# Plot the results
fig, ax = plt.subplots()
ax.plot(losses_train,'r-',label='train')
ax.plot(losses_test,'b-',label='test')
ax.set_xlim(0,n_epoch)
ax.set_xlabel('Epoch'); ax.set_ylabel('Loss')
ax.set_title('Train loss %3.2f, Test loss %3.2f'%(losses_train[-1],losses_test[-1]))
ax.legend()
plt.show()

Successfully loaded data from ./mnist1d_data.pkl
Examples in training set: 4000
Examples in test set: 1000
Length of each example: 40
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Initializing layer
Epoch     0, train loss 1.631942, train error 64.97,  test loss 1.728119, test error 69.90
Epoch     1, train loss 1.316437, train error 48.00,  test loss 1.465787, test error 54.40
Epoch     2, train loss 1.134730, train error 42.17,  test loss 1.344437, test error 53.20
Epoch     3, train loss 0.976043, train error 34.60,  test loss 1.283102, test error 51.70
Epoch     4, train loss 0.883144, train error 32.03,  test loss 1.187499, test error 46.30
Epoch     5, train loss 0.759807, train error 26.35,  test loss 1.137146, test error 43.80
Epoch     6, train loss 0.698245, train error 23.93,  test loss 1.108688, test error 44.00
Epoch     7, train loss 0.626771, train error 22.03,  test loss 1.126183, test error 42.80
Epoch     8, train loss 0.570338, train error 19.10,  test loss 1.123737, test error 42.00
Epoch     9, train loss 0.512352, train error 16.70,  test loss 1.111465, test error 41.10
Epoch    10, train loss 0.409381, train error 12.20,  test loss 1.065406, test error 40.50
Epoch    11, train loss 0.363579, train error 10.25,  test loss 1.060693, test error 39.50
Epoch    12, train loss 0.336029, train error 9.20,  test loss 1.058398, test error 39.40
Epoch    13, train loss 0.306218, train error 7.82,  test loss 1.089240, test error 39.20
Epoch    14, train loss 0.279142, train error 6.88,  test loss 1.111818, test error 39.00
Epoch    15, train loss 0.250960, train error 5.43,  test loss 1.093373, test error 38.30
Epoch    16, train loss 0.232400, train error 5.20,  test loss 1.117872, test error 39.00
Epoch    17, train loss 0.226077, train error 4.85,  test loss 1.176225, test error 39.10
Epoch    18, train loss 0.199455, train error 4.15,  test loss 1.172413, test error 39.30
Epoch    19, train loss 0.171886, train error 3.00,  test loss 1.166691, test error 38.00
Epoch    20, train loss 0.148746, train error 2.00,  test loss 1.178492, test error 36.80
Epoch    21, train loss 0.141197, train error 1.78,  test loss 1.185017, test error 37.30
Epoch    22, train loss 0.133698, train error 1.62,  test loss 1.203514, test error 38.60
Epoch    23, train loss 0.132200, train error 1.50,  test loss 1.213150, test error 37.80
Epoch    24, train loss 0.121890, train error 1.20,  test loss 1.238157, test error 37.90
Epoch    25, train loss 0.113802, train error 0.80,  test loss 1.232786, test error 38.00
Epoch    26, train loss 0.109463, train error 0.68,  test loss 1.255636, test error 38.00
Epoch    27, train loss 0.103238, train error 0.55,  test loss 1.260253, test error 38.00
Epoch    28, train loss 0.098715, train error 0.57,  test loss 1.275169, test error 37.60
Epoch    29, train loss 0.094078, train error 0.45,  test loss 1.283961, test error 37.70
Epoch    30, train loss 0.088601, train error 0.30,  test loss 1.290790, test error 38.10
Epoch    31, train loss 0.086605, train error 0.30,  test loss 1.289708, test error 37.20
Epoch    32, train loss 0.084400, train error 0.25,  test loss 1.302295, test error 37.90
Epoch    33, train loss 0.082512, train error 0.25,  test loss 1.306197, test error 37.60
Epoch    34, train loss 0.080989, train error 0.22,  test loss 1.313281, test error 38.10
Epoch    35, train loss 0.078772, train error 0.18,  test loss 1.310136, test error 37.10
Epoch    36, train loss 0.076933, train error 0.20,  test loss 1.319014, test error 37.80
Epoch    37, train loss 0.076030, train error 0.18,  test loss 1.330156, test error 37.30
Epoch    38, train loss 0.073641, train error 0.15,  test loss 1.329743, test error 37.70
Epoch    39, train loss 0.072203, train error 0.15,  test loss 1.340852, test error 37.60
Epoch    40, train loss 0.070730, train error 0.15,  test loss 1.345814, test error 37.90
Epoch    41, train loss 0.069930, train error 0.10,  test loss 1.347626, test error 38.30
Epoch    42, train loss 0.069411, train error 0.12,  test loss 1.346499, test error 37.70
Epoch    43, train loss 0.068414, train error 0.10,  test loss 1.350982, test error 37.80
Epoch    44, train loss 0.067677, train error 0.10,  test loss 1.351785, test error 37.90
Epoch    45, train loss 0.066888, train error 0.10,  test loss 1.356465, test error 38.00
Epoch    46, train loss 0.066230, train error 0.07,  test loss 1.356053, test error 37.80
Epoch    47, train loss 0.065529, train error 0.10,  test loss 1.362333, test error 38.40
Epoch    48, train loss 0.064851, train error 0.07,  test loss 1.361882, test error 37.70
Epoch    49, train loss 0.064264, train error 0.10,  test loss 1.364452, test error 37.70

Increasing Loss vs. Stable Error

In some cases, the test loss may continue to increase even though the test error remains stable. This phenomenon occurs because the model becomes increasingly confident about its predictions, driving the pre-softmax activations to extreme values. As a result, the cross-entropy loss increases while the classification error does not change significantly.

This behavior is particularly common in over-parameterized models, where the network has enough capacity to fit the training data perfectly. While the training loss continues to decrease, the test loss may increase due to overfitting, even though the test error remains relatively stable.
